Wind driven Roof turbo ventilator
LC-BEST 500mm stainless steel SS201/SS304/SS316L No power roof turbo ventilator for workshop or warehouse
LC-BEST 500mm Color steel No power roof turbo vents for warehouse
LC-BEST 500mm Powerless roof ventilation fans for industrial workshop
LC-BEST 500mm wind driven roof turbine ventilator fans
LC-BEST 500mm wind power roof turbine ventilation fans
1. Material:
Outside material: International standard Stainless steel SS201/SS304/SS316L/Aluminum Alloy/Color steel
Inside material: usually Galvanized steel, also can choose stainless steel, as the same with the outside material.
2.Our products’ Type/size: LC-BEST 75mm To LC-BEST 1500mm, we also accept OEM & customized production.
Mini series:
LC-BEST 100mm/ 150mm/200mm/250mm/300mm with the base plate, also can or without the base plate;
LC-BEST 75mm/80mm/110mm/112mm/120mm/153mm/155mm/160mm/180mm usually without the base plate, direct connection pipe or chimney;
Middle size and Large size: LC-BEST 300mm/350mm/400mm/450mm/500mm/550mm/600mm/650mm/680mm/760mm/800mm/900mm/1000mm/1100mm/1200mm/1500mm, with the base plate or without the base plate, we alco accept customized shapes' base plate
Wind Driven Roof Turbine Ventilator Fans, Mini series Type: LC-BEST 75mm -LC-BEST 300mm
(Powerless Roof Turbine ventilator Fans) (No Power Roof Turbine Ventilator Fans ) |
| No. |
Model |
Number of leaves |
Ventilates the caliber
¢(mm) |
Turbine wheel outer diameter
¢(mm) |
Common high
(mm) |
Outline diameter
D*D*H
(mm) |
Foundation size
A*B(mm) |
the wind speed
11km/h(3.05m/s)
air ventilation
(m³/per hour) |
| NO. |
common
Product's Model |
the blades number
(pcs) |
Neck/Throat Diameter
(mm) |
Ball Diameter
(mm) |
Common high
(mm) |
Packing size
L*W*H
(mm) |
the common base plate size
A*B(mm) |
the wind speed
11km/h(3.05m/s)
air ventilation
(m³/per hour) |
| 1 |
LC-BEST 75mm
(3") |
14 |
75mm |
250mm |
260mm |
260*260*270mm |
|
1900 m³ |
| 2 |
LC-BEST 80mm
(3") |
14 |
80mm |
250mm |
260mm |
260*260*270mm |
|
1980 m³ |
| 3 |
LC-BEST 100mm
(4") |
14 |
100mm |
250mm |
260mm |
260*260*270mm |
|
2000 m³ |
| 4 |
LC-BEST 110mm
(4") |
14 |
110mm |
255mm |
260mm |
270*270*270mm |
|
2050 m³ |
| 5 |
LC-BEST 120mm
(5") |
14 |
120mm |
260mm |
270mm |
270*270*280mm |
|
2100 m³ |
| 6 |
LC-BEST 150mm
(6") |
14 |
150mm |
270mm |
280mm |
280*280*290mm |
260mm*260mm |
2250 m³ |
| 7 |
LC-BEST 153mm
(6") |
14 |
153mm |
272mm |
280mm |
280*280*290mm |
260mm*260mm |
2265 m³ |
| 8 |
LC-BEST 155mm
(6") |
14 |
155mm |
275mm |
280mm |
280*280*290mm |
|
2280 m³ |
| 9 |
LC-BEST 160mm
(6") |
14 |
160mm |
280mm |
290mm |
290*290*300mm |
|
2300 m³ |
| 10 |
LC-BEST 200mm
(8") |
14 |
200mm |
300mm |
300mm |
310*310*310mm |
300mm*300mm |
2500 m³ |
| 11 |
LC-BEST 220mm
(9") |
14 |
220mm |
320mm |
300mm |
330*330*310mm |
|
2580 m³ |
| 12 |
LC-BEST 250mm
(10") |
14/24 |
250mm |
350mm |
300mm |
360*360*310mm |
350mm*350mm |
2650 m³ |
Wind Driven Roof Turbine Ventilator Fans, The Middle and The Large series Type: LC-BEST 300mm-LC-BEST 1500mm
(Powerless Roof Turbine ventilator Fans) (No Power Roof Turbine Ventilator Fans ) |
| No. |
Model |
Number of leaves |
Ventilates the caliber
¢(mm) |
Turbine wheel outer diameter
¢(mm) |
Common high
(mm) |
Outline diameter
D*D*H
(mm) |
Foundation size
A*B(mm) |
the wind speed
11km/h(3.05m/s)
air ventilation
(m³/per hour) |
| NO. |
common
Product's Model |
the blades number
(pcs) |
Neck/Throat Diameter
(mm) |
Ball Diameter
(mm) |
Common high
(mm) |
Packing size
L*W*H
(mm) |
the common base plate size
A*B(mm) |
the wind speed
11km/h(3.05m/s)
air ventilation
(m³/per hour) |
| 13 |
LC-BEST 300mm (12") |
24 |
300mm |
400mm |
350mm |
420*420*360mm |
500mm*500mm |
2800 m³ |
| 14 |
LC-BEST 350mm
(14") |
24 |
350mm |
450mm |
350mm |
460*460*360mm |
|
3300 m³ |
| 15 |
LC-BEST 400mm
(16") |
24 |
400mm |
480mm |
370mm |
500*500*390mm |
550mm*550mm |
3400 m³ |
| 16 |
LC-BEST 450mm
(18") |
24 |
450mm |
550mm |
470mm |
560*560*480mm |
|
3500 m³ |
| 17 |
LC-BEST 500mm
(20") |
32 |
500mm |
600mm |
480mm |
610*610*500mm |
620mm*680mm |
3800 m³ |
| 18 |
LC-BEST 550mm
(22") |
32 |
580mm |
650mm |
600mm |
610*610*500mm |
|
4100 m³ |
| 19 |
LC-BEST 600mm
(24") |
32 |
600mm |
700mm |
600mm |
715*715*615mm |
730mm*750mm |
4500 m³ |
| 20 |
LC-BEST 680mm
(27") |
32 |
680mm |
800mm |
600mm |
810*810*615mm |
1000mm*900mm |
5000 m³ |
| 21 |
LC-BEST 760mm
(30") |
42 |
760mm |
890mm |
600mm |
900*900*615mm |
|
6000 m³ |
| 22 |
LC-BEST 800mm
(32") |
42 |
800mm |
900mm |
600mm |
910*910*615mm |
1000mm*1000mm |
6500 m³ |
| 23 |
LC-BEST 900mm
(36") |
42 |
900mm |
1000mm |
600mm |
1010*1010*615mm |
1100mm*1100mm |
7000 m³ |
| 24 |
LC-BEST 1000mm
(39") |
42 |
1000mm |
1100mm |
600mm |
1110*1110*615mm |
1200mm*1200mm |
7800 m³ |
| 25 |
LC-BEST 1100mm
(43") |
60 |
1100mm |
1200mm |
600mm |
1210*1210*615mm |
|
8600 m³ |
| 26 |
LC-BEST 1200mm
(47") |
60 |
1200mm |
1300mm |
600mm |
1310*1310*615mm |
1340mm*1530mm |
9600 m³ |
| 27 |
LC-BEST 1500mm
(59") |
60 |
1500mm |
1600mm |
600mm |
|
|
12800 m³ |
Theoretical dimensions of containers
① 1*20"GP(L*W*H): 5.898m * 2.352m * 2.35m.② 1*40"HQ(L*W*H): 12.02m * 2.352m * 2.68m. |
3. Benefits of Roof Turbine Ventilation Systems:
1).Old air is extracted removing heat, fumes, steam and dust
2).Improves people’ s productivity
3).Improves indoor air quality
4).Water and bird proof
5).Reduces structural damage in lofts
6).Protects stored goods
7).Human and environmentally friendly
8).Requires no electricity
4. Be widely used:
Turbine ventilators remove the heat from your building inducing currents of fresh air cooling your people and the environment.
Ideal to ventilate factories, workshops, warehouses, agricultural applications, schools, hostels, assembly halls and other buildings which require effective and efficient ventilation. The extraction produces fresh cool breezes into the building and ensures a cleaner, cooler and more healthy working environment.

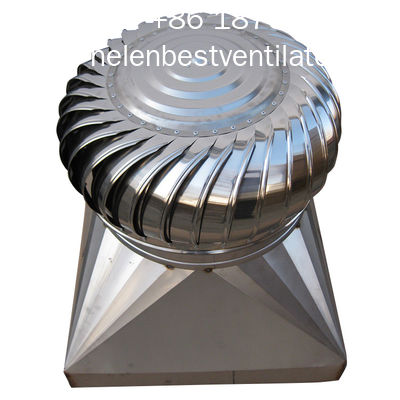

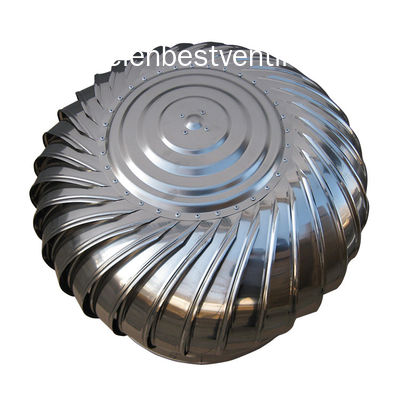

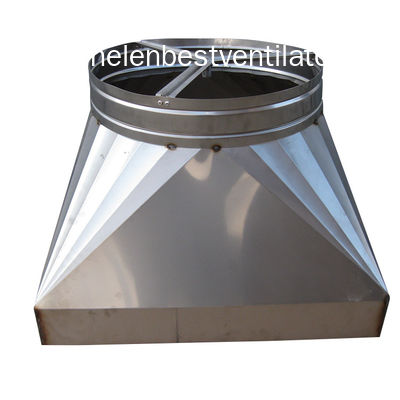

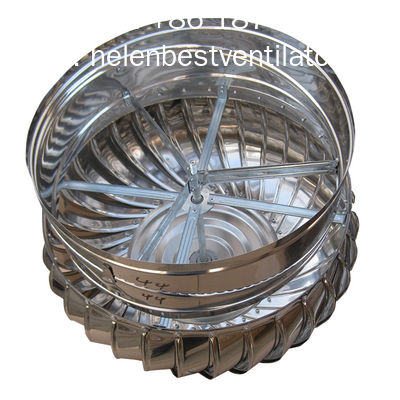

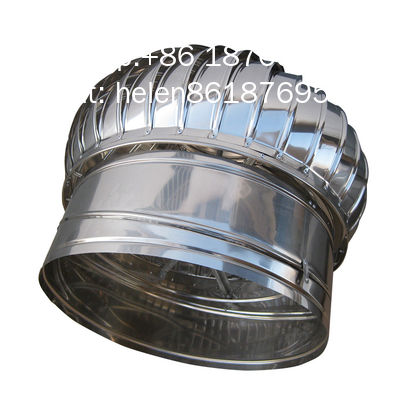

5. LC-BEST 500mm products' pictures:

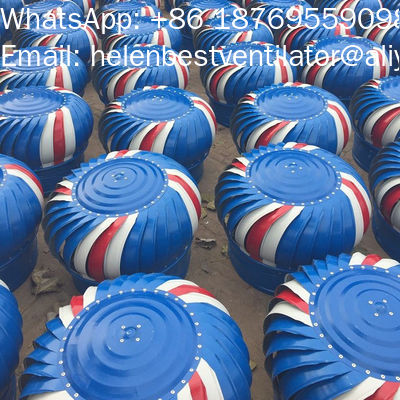

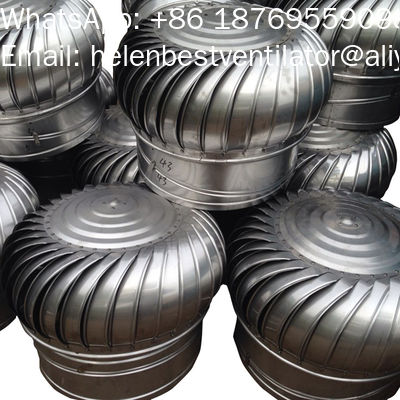

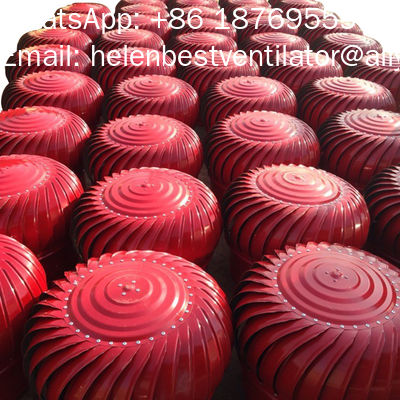

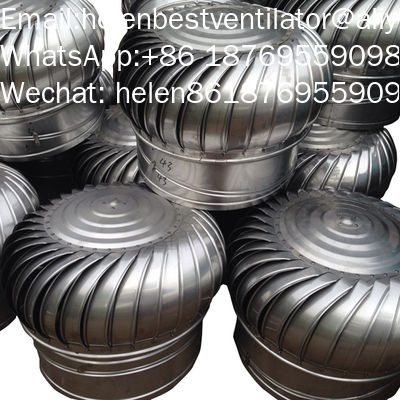

6. Another size wind driven roof turbine ventilator fans products:

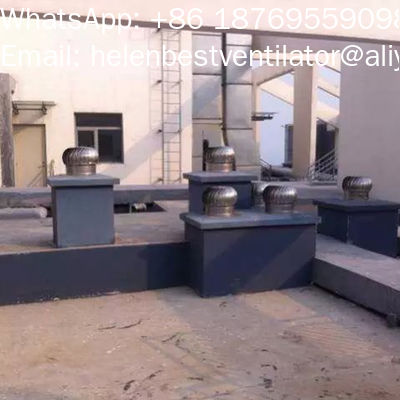

7. Projects:
