    Product Details:

    Place of Origin: Liaocheng city of Shandong province
    Brand Name: "LC-BEST" or OEM
    Certification: SGS certificate
    Model Number: 300mm

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pieces according to choose model
    Packaging Details: single box or wooden carton box
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 10000 pieces/per month
    Contact Now
    Detailed Product Description
    The Size/model: LC-BEST 300 Mm, Accept Customized Size. Outside Material: Stainless Steel SS201/SS304/SS316L, Aluminum, Color Steel
    Inside Material: Usually Galvarnized Steel, Also Can Choose Stainless Steel As The Same With Outside Material The Blades Thickness: 0.27mm Or 0.30mm Or 0.40mm, Accept Customized
    The Blades Number: 24 Pieces Diameter Of The Neck/throat: 300mm
    Diameter Of Vatination Ball: 400mm Another Parts' Material Thickness: 0.40mm/0.50mm/0.60mm, Accept Customized
    The Neck Type: Adjust Neck Or Not Adjust Neck Total Height: Usually 400mm, Accept Customized
    The Base Plate Size: 500mm*500mm, Accept Customized Assembly Packing: Single Box, Export Packing.
    Disassembly Products Packing: 30 Pieces/per Box, Export Packing. Customized: LOGO/PACKING, And So On.

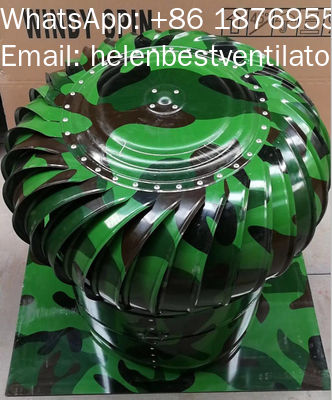

    Color: Accept Spray Color. Delivery Time: Usually Within 5 Working Days Produce And Send To The Loading Port
    Payment: TT, LC Service: Provide Professional Technical Support

    Wind driven roof turbine ventilator fans

    Stainless steel SS201/SS304/Color steel LC-BEST 300mm roof turbo ventilator for family or small factory and warehouse

    Liaocheng Wantong Ventilation Equipment Co., Ltd found in 2010. we have our own export company"Liaocheng Best Resources Co., Ltd", we have obtained the SGS certificate, please believe us, we also can let our customers save the more cost. We produce and export roof ventilation equipment, We have our own production lines and export rights, our products are low cost, no pollution, Green environmental protection products, so they are very popular in all over the world.

    1. Our products model/size: From LC-BEST 75mm To LC-BEST1500mm

    1). Mini model:

    LC-BEST 75mm /110mm/112mm/120mm/153mm/155mm/160mm/180mm without the base plate, directly connect to pipes or chimney;

    LC-BEST 100mm/150mm/200mm/250mm/300mm with the base plate;

    2). Middle model:

    LC-BEST 400mm/450mm/500mm/550mm/600mm/650mm/680mm/760mm/800mm/900mm with the base plate or without the base plate

    3). The large model:

    LC-BEST 1000mm/1100mm/1200mm/1500mm with the base plate or without the base plate.



    Wind Driven Roof Turbine Ventilator Fans, Mini series Type: LC-BEST 75mm -LC-BEST 300mm
    (Powerless Roof Turbine ventilator Fans) (No Power Roof Turbine Ventilator Fans )
    No. Model Number of leaves Ventilates the caliber
    ¢(mm)
    Turbine wheel outer diameter
    ¢(mm)
    Common high
    (mm)
    Outline diameter
    D*D*H
    (mm)
    Foundation size
    A*B(mm)
    the wind speed
    11km/h(3.05m/s)
    air ventilation
    (m³/per hour)
    NO. common
    Product's Model
    the blades number
    (pcs)
    Neck/Throat Diameter
    (mm)
    Ball Diameter
    (mm)
    Common high
    (mm)
    Packing size
    L*W*H
    (mm)
    the common base plate size
    A*B(mm)
    the wind speed
    11km/h(3.05m/s)
    air ventilation
    (m³/per hour)
    1 LC-BEST 75mm
    (3")
    14 75mm 250mm 260mm 260*260*270mm   1900 m³
    2 LC-BEST 80mm
    (3")
    14 80mm 250mm 260mm 260*260*270mm   1980 m³
    3 LC-BEST 100mm
    (4")
    14 100mm 250mm 260mm 260*260*270mm   2000 m³
    4 LC-BEST 110mm
    (4")
    14 110mm 255mm 260mm 270*270*270mm   2050 m³
    5 LC-BEST 120mm
    (5")
    14 120mm 260mm 270mm 270*270*280mm   2100 m³
    6 LC-BEST 150mm
    (6")
    14 150mm 270mm 280mm 280*280*290mm 260mm*260mm 2250 m³
    7 LC-BEST 153mm
    (6")
    14 153mm 272mm 280mm 280*280*290mm 260mm*260mm 2265 m³
    8 LC-BEST 155mm
    (6")
    14 155mm 275mm 280mm 280*280*290mm   2280 m³
    9 LC-BEST 160mm
    (6")
    14 160mm 280mm 290mm 290*290*300mm   2300 m³
    10 LC-BEST 200mm
    (8")
    14 200mm 300mm 300mm 310*310*310mm 300mm*300mm 2500 m³
    11 LC-BEST 220mm
    (9")
    14 220mm 320mm 300mm 330*330*310mm   2580 m³
    12 LC-BEST 250mm
    (10")
    24 250mm 400mm 300mm 400*400*310mm 350mm*350mm 2650 m³
    13 LC-BEST 300mm (12") 24 300mm 400mm 359mm 405*405*360mm 500mm*500mm 2800 m³
    14 LC-BEST 350mm
    (14")
    24 350mm 450mm 350mm 460*460*360mm   3300 m³
    15 LC-BEST 400mm
    (16")
    24 400mm 480mm 370mm 500*500*390mm 550mm*550mm 3400 m³
    16 LC-BEST 450mm
    (18")
    24 450mm 550mm 470mm 560*560*480mm   3500 m³
    17 LC-BEST 500mm
    (20")
    32 500mm 600mm 480mm 610*610*500mm 620mm*680mm 3800 m³
    18 LC-BEST 550mm
    (22")
    32 580mm 650mm 600mm 610*610*500mm   4100 m³
    19 LC-BEST 600mm
    (24")
    32 600mm 700mm 600mm 715*715*615mm 730mm*750mm 4500 m³
    20 LC-BEST 680mm
    (27")
    32 680mm 800mm 600mm 810*810*615mm 1000mm*900mm 5000 m³
    21 LC-BEST 760mm
    (30")
    42 760mm 890mm 600mm 900*900*615mm   6000 m³
    22 LC-BEST 800mm
    (32")
    42 800mm 900mm 600mm 910*910*615mm 1000mm*1000mm 6500 m³
    23 LC-BEST 900mm
    (36")
    42 900mm 1000mm 600mm 1010*1010*615mm 1100mm*1100mm 7000 m³
    24 LC-BEST 1000mm
    (39")
    42 1000mm 1100mm 600mm 1110*1110*615mm 1200mm*1200mm 7800 m³
    25 LC-BEST 1100mm
    (43")
    60 1100mm 1200mm 600mm 1210*1210*615mm   8600 m³
    26 LC-BEST 1200mm
    (47")
    60 1200mm 1300mm 600mm 1310*1310*615mm 1340mm*1530mm 9600 m³
    27 LC-BEST 1500mm
    (59")
    60 1500mm 1600mm 600mm     12800 m³
    Theoretical dimensions of containers
    ① 1*20"GP(L*W*H): 5.898m * 2.352m * 2.35m.② 1*40"HQ(L*W*H): 12.02m * 2.352m * 2.68m.

    2. Our products material: 5 types

    1). Outside material: International standard Stainless steel SS201/SS304/SS316L, Aluminum alloy, Color coated steel, Galvernized steel.

    2). Inside material: Galvernized steel, International standard Stainless steel SS201/SS304/SS316L/Aluminum alloy

    3. Benefits of Roof Turbine Ventilation Systems:

    1). Old air is extracted removing heat, fumes, steam and dust

    2). Improves people’ s productivity

    3). Improves indoor air quality

    4). Water and bird proof

    5). Reduces structural damage in lofts

    6). Protects stored goods

    7). Human and environmentally friendly

    8). Requires no electricity

    9). Suit to all kinds of buildings, for example: pipe/tube, factory, room, and so on.

    4. Quality: GB/ISO 9001-2000, SGS Certificate

    Material: international standard stainless steel SS201/SS304/SS316L, aluminum alloy, color coated steel, high quality, enough strong, running fast & running smoothly, one-time stamping forming. strong and fast turning. Simple installation, long service life.

    5. We supply and export within all over the world!

    Turbine ventilators remove the heat from your building inducing currents of fresh air cooling your people and the environment.

    Ideal to ventilate factories, workshops, warehouses, agricultural applications, schools, hostels, assembly halls and other buildings which require effective and efficient ventilation. The extraction produces fresh cool breezes into the building and ensures a cleaner, cooler and more healthy working environment.

    Welcome visit our factroy! Welcome our cooperation! Please contact us!

    Email: helenbestventilator@aliyun.com,

    Wechat: helen8618769559098, WhatsApp: +86 18769559098.

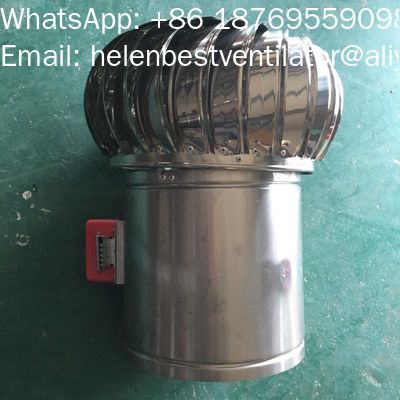

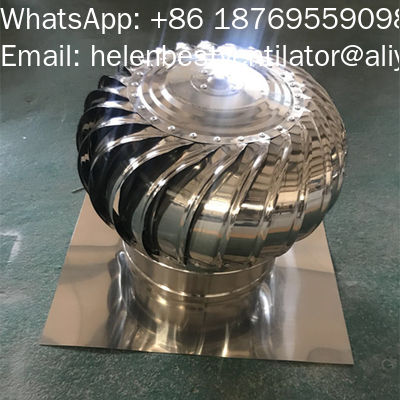

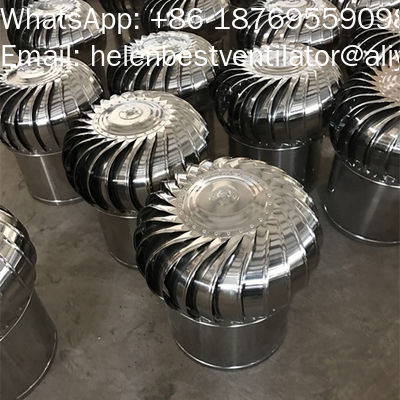

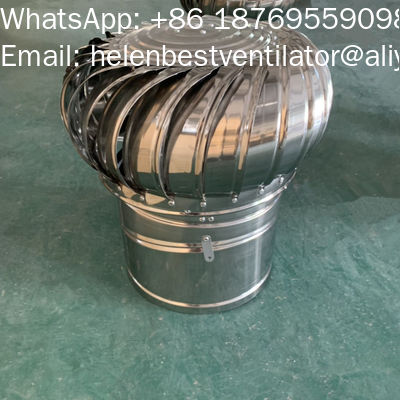

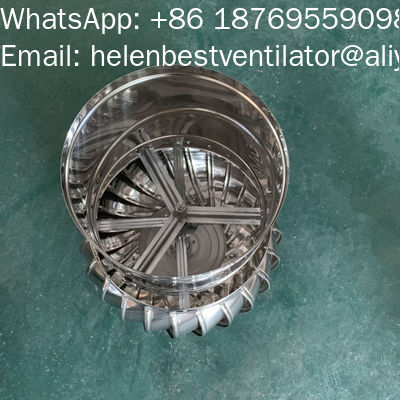

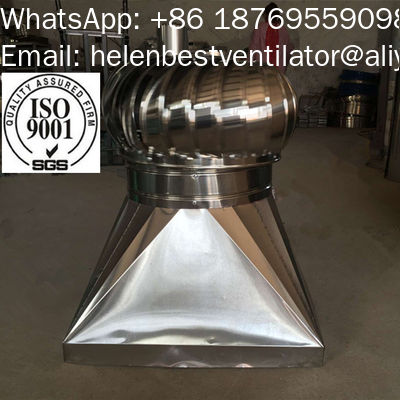

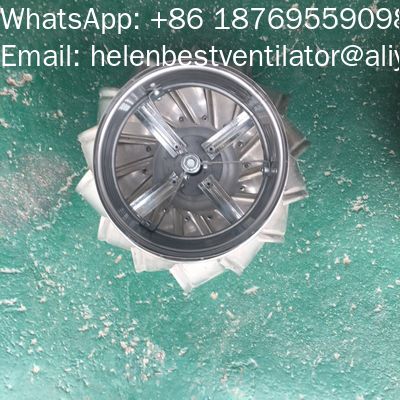

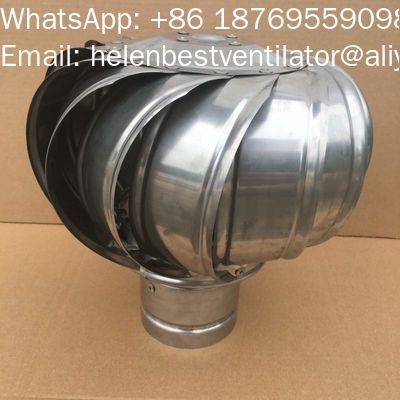

    6. LC-BEST 300mm size Products pictures:

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificatethe popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificatethe popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

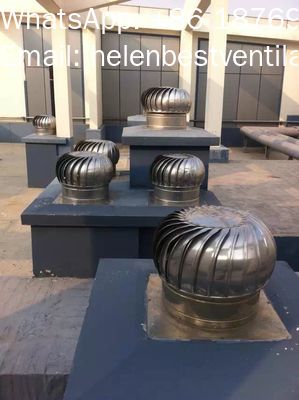

    7. LC-BEST 300mm projects pictures:

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

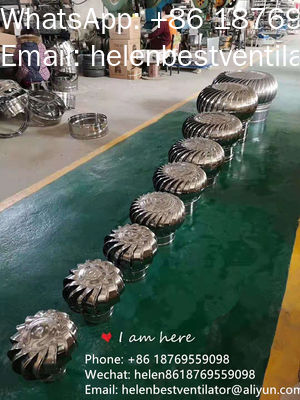

    7. Another sizes products' pictures:

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificatethe popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate

    the popular size LC-BEST 300mm (12") wind driven Roof turbine ventilators for famliy with SGS certificate
